Steelx

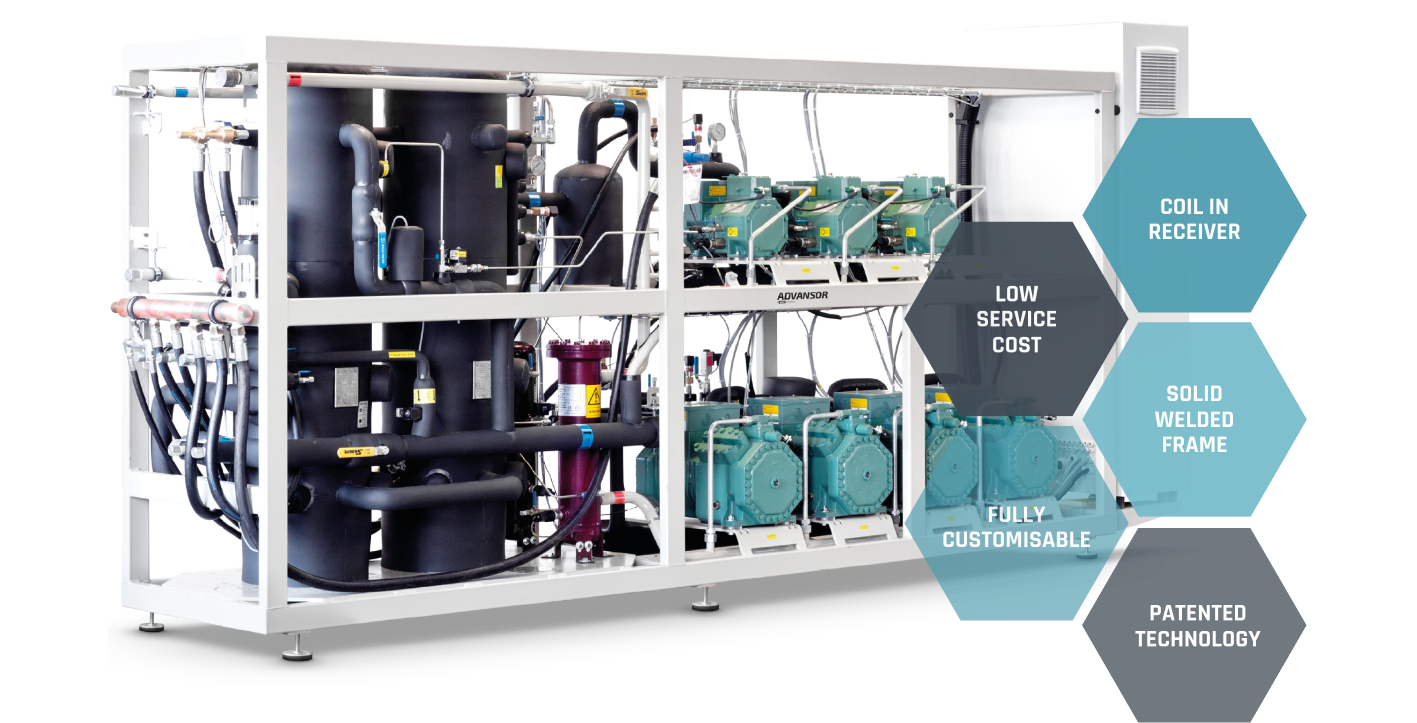

Steelx_HERO_small

The original innovative Advansor design from which all other designs evolved. A robust, ultrahigh quality refrigeration system with the most elaborate scope of options and energy saving features. Fully customisable to meet demands of supermarket as well as industrial applications.

MT (IT) Compressors

2-6

LT Compressors

1-5

Max Capacity MT [kW]*

420

Max Capacity LT [kW]*

240

Receiver Volume [L]

130-340

Electrical Connection

3x400V (TN-S system)

Height [mm]

2,200

Width [mm]

800

Length [mm]

4,000-7,500

Weight [kg]

2,000-4,000

Steelx_Graph_3

*All capacities are calculated at -8°C MT, -30°C LT and 35°C out of the gas cooler

  • STANDARD EQUIPMENT
  • LT Suction Accumulator
    Patented Internal Heat Exchanger in Receiver
    Hot Gas Dump
    Liquid Injection
    Filter Drier
    CO2 Low Level Switch
    Frequency Inverter on MT1
  • CONTROLLERS AVAILABLE
  • Danfoss
    Wurm
    Carel
    Eckelmann
  • STANDARD DESIGN PRESSURES
  • High Pressure: 130 bar
    Receiver Pressure: 80 bar
    MT Suction Pressure: 52 bar
    LT Suction Pressure: 30 bar
  • OPTIONS AVAILABLE
  • Advanced Heat Recovery
    Permanent Magnet Motors
    Ejector Technology
    Enclosure for Low Noise and Outdoor Installation
    CO2 Liquid Level Measurement
    Gas Cooler Bypass
    Double High Pressure and Gas Bypass Valves
    Back-up Controller
    CE-marked Pressure Relief Valves Manifold
    Double Pressure Relief Valves on Changeover Valve
    MT Suction Accumulator
    60 Bar Suction Side
    Energy Meter
    Heat Pump Evaporator Function
    Multiple Suction Groups
    Subcooler
    Liquid Subcooler
    Hot Gas Defrost
    Insulated Hot Surfaces
    Chiller Module
    Pump Module
    Ultra Low Superheat Module
    Cylinder Unloading Technology
    Emergency Cooling Unit with CO2
    120 bar high pressure

ISO 9001:2015 certified

Extensive factory tests to ensure fast commission
on both pressure and electrical installations
Documentation and manuals that meet legal
requirements.
